High-speed linear narrow-belt sorting machine

High-speed linear narrow-belt sorting machine

Product Overview

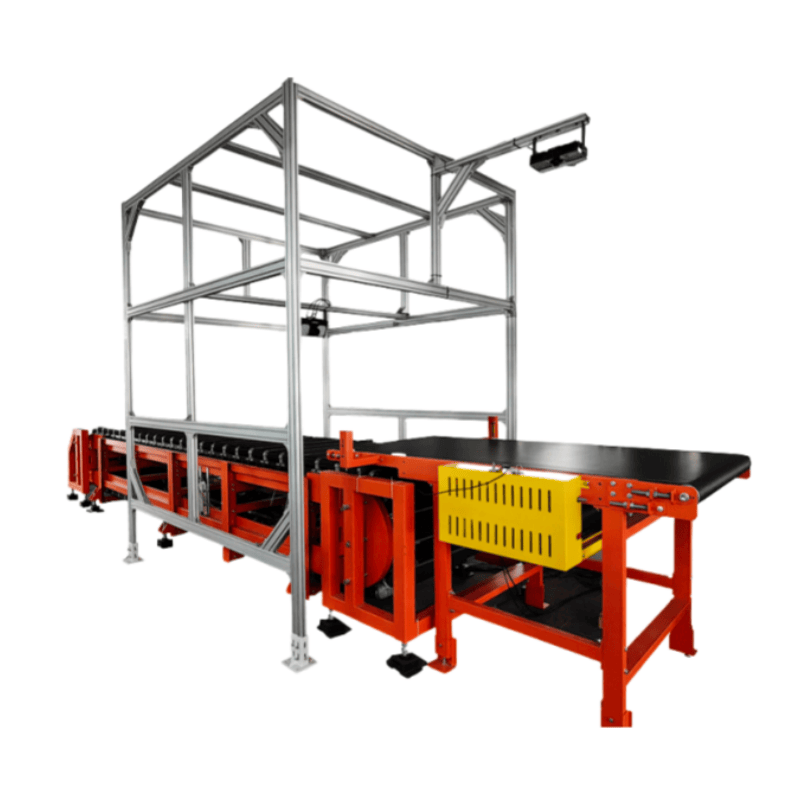

The linear narrow-belt sorting machine is a high-efficiency, flexible automated sorting system that combines a straight-line narrow-belt conveyor with visual scanning technology to achieve high-speed sorting of small, medium, and large parcels—including soft packages and thin items—at rates of 8,000 to 18,000 pieces per hour. It achieves a top-scan barcode recognition rate of 99%. The equipment features multiple parallel narrow belts, integrated barcode scanning camera booths, and mechanical drive units, supporting parcel dimensions from 100×100×1 mm to 1500×800×700 mm and weights from 0.05 to 50 kg. Conveyor speed is adjustable between 1.0 and 2.0 m/s, with a minimum footprint of just 300㎡.

Its core advantages include high compatibility (handling various parcel types on a single machine), precise sorting (reducing misclassified items), space optimization (ideal for mezzanine warehouses), and low energy consumption with easy maintenance (40% lower power usage). Widely used in e-commerce, express delivery, fresh food cold chain logistics, and other industries, it supports mixed-code sorting and temperature-controlled operations. In the future, it will integrate AI-based visual damage detection for waybills, dynamically adjust sorting bins via IoT, and support flexible expansion of narrow belt numbers to accommodate traffic fluctuations during peak sales periods, making it an economical automation solution across multiple sectors.

Core Positioning

A high-efficiency, flexible sorting system utilizing a straight-line narrow-belt conveyor combined with visual scanning technology to sort small, medium, and large parcels at speeds of 8,000 to 18,000 pieces per hour with 99% accuracy. Suitable for diverse industry applications including e-commerce, express delivery, and fresh produce logistics.

Structural Features

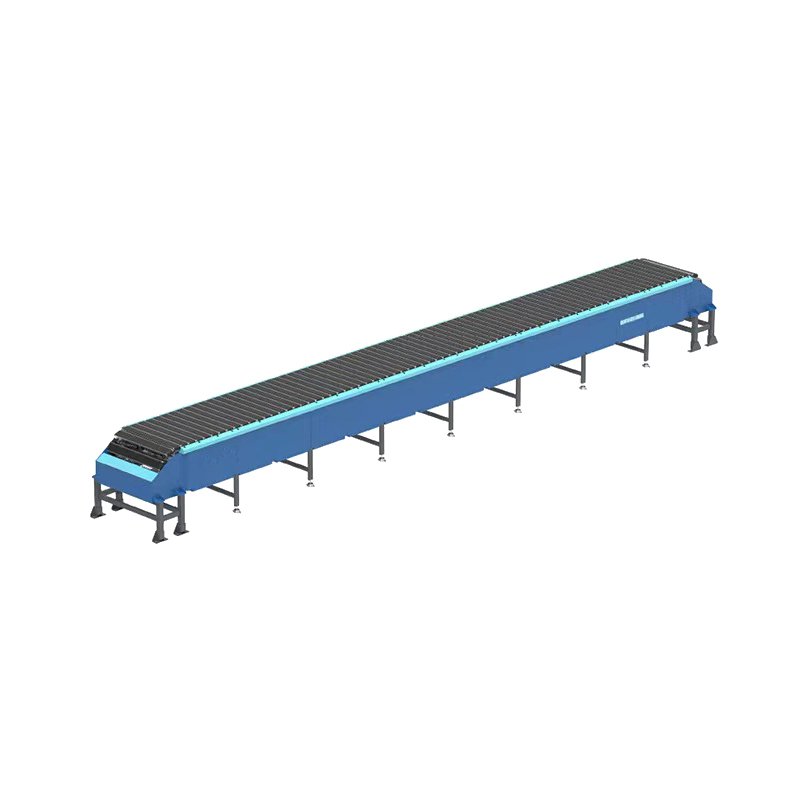

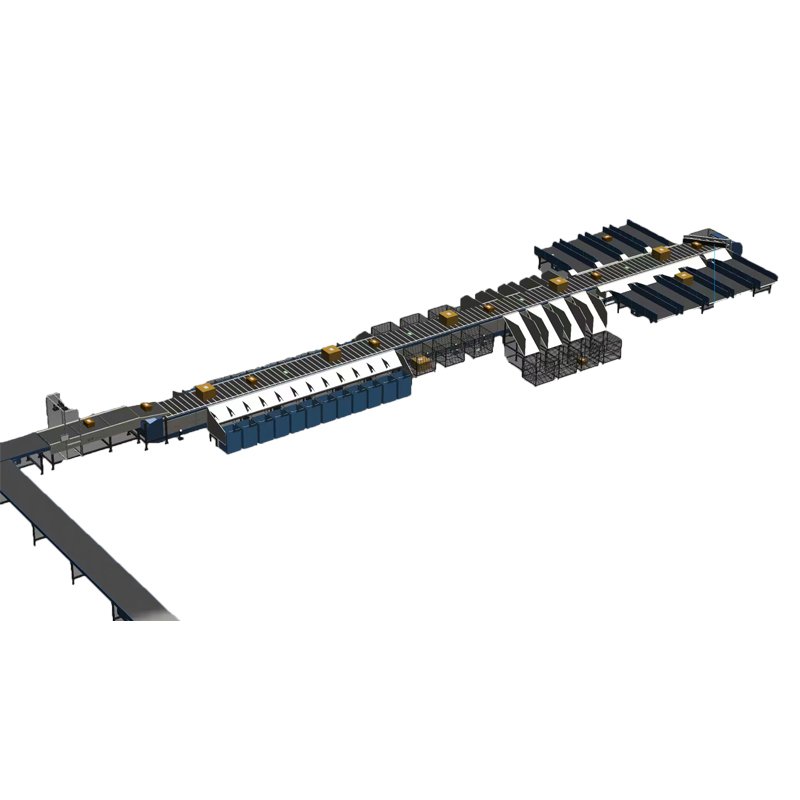

Linear Narrow-Belt Design: Multiple parallel narrow conveyors (widths adapted to parcel sizes) integrated with scanning camera booths and chute systems for bin discharge.

Mechanical Drive Unit: Narrow-belt carts use gear-driven mechanisms for precise turning, directing parcels into designated collection bins.

Application Scenarios and Advantages

1. Typical Applications

E-Commerce Warehousing & Distribution: Handles small-to-medium parcels such as footwear and books, supporting mixed-code sorting.

Express Sorting & Transfer: Accurately sorts irregular-shaped items (e.g., file folders, soft packages).

Fresh Food Cold Chain: Combines temperature-controlled bins for non-destructive sorting of perishable goods.

2. Key Advantages

High Compatibility: A single machine handles parcels of all sizes, including ultra-thin items as flat as 1 mm.

Precision and Efficiency: Top-scan barcode recognition rate reaches 99%, achieving 3–5 times higher efficiency than manual sorting.

Space Optimization: Minimum footprint of 300㎡, ideal for compact environments like mezzanine warehouses.

Low Energy Consumption & Easy Maintenance: 40% lower energy use compared to cross-belt sorters; modular design reduces maintenance costs.
