Swivel Wheel Sorter Machine Unit
Product Overvie

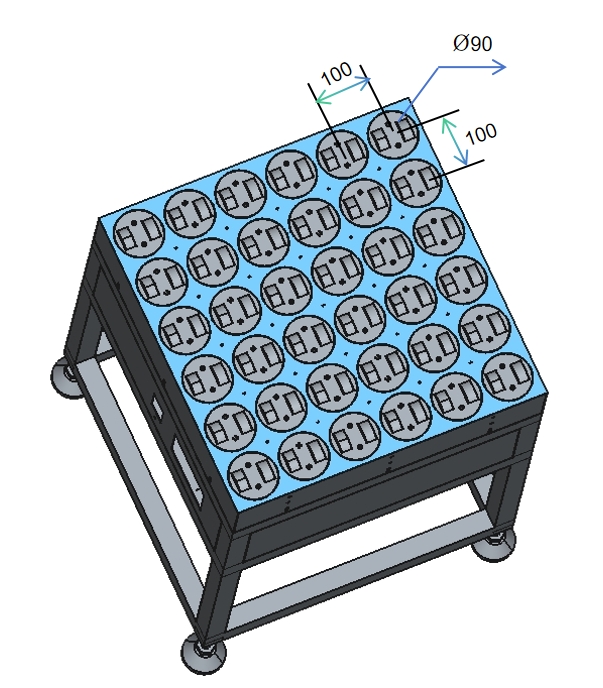

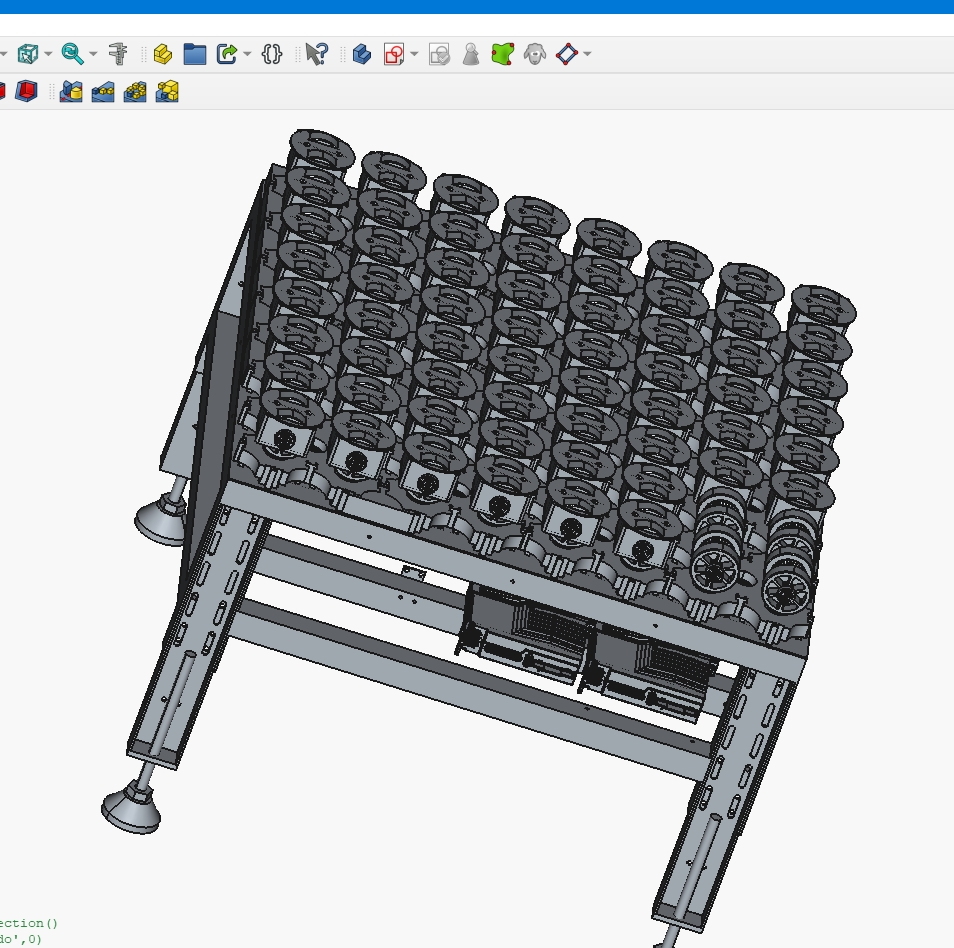

The Swivel Wheel Sorter Machine Unit is a high-efficiency, modular automatic sorting system designed for modern logistics and warehousing operations. It consists of a dense array of independently controlled, omni-directional swivel wheels arranged in a matrix. Guided by an intelligent control system, these wheels dynamically adjust their rotation direction and angle, gently and accurately diverting parcels, cartons, and packages to pre-defined sorting destinations. As a core component of automated sorting lines, it seamlessly integrates with upstream DWS (Dimensioning, Weighing, Scanning) systems, conveyor belts, and downstream storage/loading areas, forming a closed-loop, unmanned sorting workflow. It is widely recognized as an ideal solution for mid-to-high volume distribution centers due to its flexibility, speed, and gentle handling capabilities.
Industry Pain Points & Solutions
| Industry Pain Points | Our Targeted Solutions |
|---|---|
| 1. Low Efficiency & High Labor CostManual sorting is slow, prone to fatigue, and struggles to handle peak order volumes, leading to delayed shipments and rising labor costs. | Automated, High-Speed Sorting: Eliminates reliance on manual labor, achieving a sorting capacity of up to 6,000-10,000 parcels per hour, easily handling daily and peak-season volumes. |
| 2. High Sorting Error RateHuman error in manual sorting leads to mis-deliveries, lost parcels, and customer complaints, damaging brand reputation. | Precision Sorting Control: Tied to the WMS/ERP system, it sorts based on barcode/RFID data with an accuracy rate of over 99.9%, eliminating human error. |
| 3. High Cargo Damage RateTraditional rigid sorters (e.g., cross-belt, tilt-tray) use impact or tilting to divert goods, easily damaging fragile items, soft packages, or irregularly shaped parcels. | Gentle, Contactless Diverting: The swivel wheels push parcels horizontally with a smooth, continuous force, avoiding impact and tilt, thus reducing the damage rate to nearly zero. |
| 4. Large Footprint & Inflexible LayoutConventional sorting machines require large, fixed spaces and are difficult to modify once installed, limiting future business expansion. | Modular, Space-Saving Design: Composed of independent modules, it can be customized to fit various site layouts. The compact structure requires 30-50% less space than cross-belt sorters for the same throughput. |
| 5. High Maintenance & Operation CostsComplex mechanical structures of traditional sorters lead to frequent breakdowns, high maintenance costs, and downtime losses. | Low-Maintenance, Reliable Operation: The simple structure of the swivel wheel modules means fewer moving parts, low wear and tear, and easy replacement of individual modules, minimizing downtime. |
Core Features
•Modular & Flexible Design
The sorter is built with independent wheel modules, allowing for easy expansion or reconfiguration of sorting ports to adapt to changing business needs. It supports sorting angles of 30°, 45°, and 90°, providing maximum layout flexibility.
•High Sorting Speed & Accuracy
Equipped with high-performance servo motors and a real-time control system, it achieves a sorting speed of up to 1.5m/s with an accuracy rate of ≥99.9%, ensuring reliable performance even at full capacity.
•Gentle & Versatile Handling
The horizontal diverting force generated by the swivel wheels is non-impact, making it suitable for a wide range of goods, including fragile items, soft bags, envelopes, irregularly shaped parcels, and heavy cartons (0.1kg to 50kg).
•Intelligent & Easy Integration
Supports seamless connection with WMS, ERP, and DWS systems via standard communication protocols (TCP/IP, Modbus). The user-friendly HMI interface simplifies operation, monitoring, and fault diagnosis.
•Low Noise & Energy Efficient
The optimized wheel structure and motor control reduce operational noise to below 65dB. The energy-saving drive system lowers power consumption, contributing to lower operational costs.
•Robust & Durable Construction
Made of high-strength carbon steel and anti-wear materials, the main body and wheels are designed for long-term, high-frequency operation, with a service life of over 8 years under normal conditions.
Application Scenarios & Value
•Express & E-Commerce Warehousing
Ideal for sorting high-volume parcels and packages in e-commerce fulfillment centers and express hubs. It enables fast order processing, reduces sorting time from hours to minutes, and supports same-day/next-day delivery services.
•Retail & Distribution Centers
Used for sorting SKUs for different retail outlets, regional warehouses, or cross-docking operations. It optimizes inventory flow, reduces manual handling, and improves the efficiency of the entire supply chain.
•Logistics & Third-Party Logistics (3PL)
Provides flexible sorting solutions for 3PL providers handling multi-client, multi-channel orders. Its modular design allows for quick reconfiguration to meet changing client requirements.
•Postal Service & Parcel Delivery
Perfect for sorting letters, flats, and parcels in postal distribution centers. The gentle handling ensures that even thin envelopes and fragile documents are not damaged during sorting.
•Food, Pharma & Cold Chain Logistics
Suitable for sorting food and pharmaceutical products, as the smooth, contamination-free surface meets hygiene standards and prevents damage to temperature-sensitive or easily soiled goods.
Core Business Value:
•Boost warehouse operational efficiency by 40-70%
•Reduce labor costs by 50-80%
•Cut cargo damage rate to less than 0.01%
•Improve order fulfillment accuracy and customer satisfaction
•Enable scalable, unmanned warehousing for future business growth
