Z-Type Diverging Sorting Machine | High-Speed Diverging Sorter | WINDA

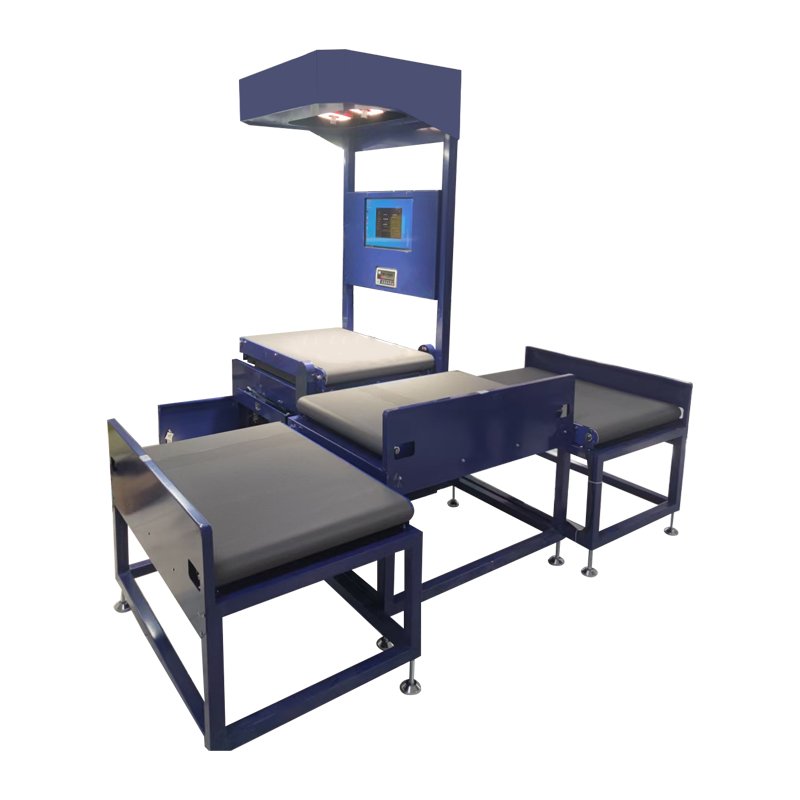

The Z-shaped one-cent multi-sorting equipment adopts a unique Z-shaped layout, integrating conveyor belts, multiple sorting units, industrial cameras, and weighing devices to achieve efficient semi-automated sorting. Its working principle is integrated with an electronic platform scale or rolling scale and an industrial camera, simultaneously reading package weight and barcode information. The processing speed can reach 2000 pieces per item in 1-3 seconds, with a weighing accuracy of ± 1g and a code reading accuracy of 99.9%. The equipment supports regular and irregular parcels ranging from 50mm³ to 400mm³, adapting to e-commerce logistics, express sorting centers, and warehouse management scenarios. Compared to traditional equipment, its advantages lie in efficient and accurate information collection, reduced labor costs, seamless integration with logistics systems for information-based management, strong adaptability, and significantly improved sorting efficiency and accuracy, making it an ideal choice for modern logistics sorting.

Send Email：[email protected]

Email INQUIRY

Product details

Z-Type Diverging Sorting Machine

[+] Intelligent Z-Path Diverted Conveyor System | Multi-Lane Sorting Solution for E-commerce & Logistics

2000-4000

Throughput (pcs/h)

2-10 Lanes

Diverging Lanes

300-600mm

Belt Width

3-5m

Z-Elevation Height

Product Overview

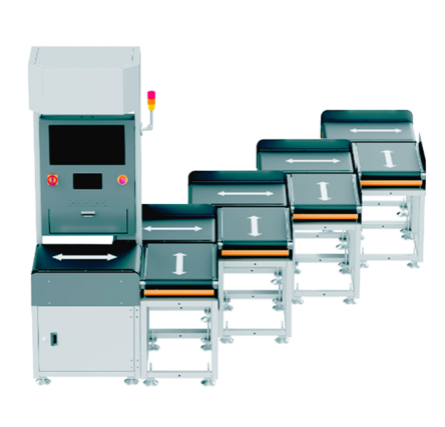

The Z-Type Diverging Sorting Machine is an advanced conveyor-based diverter system designed for high-efficiency parcel sorting in logistics hubs, e-commerce fulfillment centers, and postal distribution facilities. Its innovative Z-shaped elevation design enables smooth transitional flow between different conveyor levels while maintaining gentle handling of packages.

With configurable 2-10 diverging lanes and throughput capacity of 2000-4000 pieces per hour, this system provides flexible, scalable sorting solutions for operations requiring multi-destination parcel routing. The modular design allows seamless integration into existing conveyor networks with minimal footprint expansion.

Core Features

[+] Z-Type Elevation Design

Space-saving Z-shaped conveyor path enables vertical elevation between sorting levels while maintaining continuous product flow and minimizing floor space requirements.

[+] Multi-Lane Diverging Capability

Configurable 2-10 diverging lanes provide flexible routing options for multi-destination sorting, supporting complex logistics workflows with minimal manual intervention.

[+] High Throughput Performance

Delivers 2000-4000 pieces per hour sorting capacity with consistent accuracy, making it ideal for high-volume e-commerce and express delivery operations.

[+] Adjustable Belt Width

Belt width configurable from 300-600mm accommodates diverse parcel sizes from small envelopes to medium-sized packages, ensuring versatile application coverage.

[+] Modular System Integration

Plug-and-play modular design enables seamless integration with existing conveyor systems, cross-belt sorters, and automated guided vehicle (AGV) networks.

[+] Gentle Product Handling

Smooth Z-path transition minimizes package tilting and impact damage, ensuring safe handling of fragile items, electronics, and high-value commodities.

How It Works

Package Infeed - Parcels enter the Z-type diverging sorter via infeed conveyor, with flow rate controlled at 2000-4000 pcs/hour depending on configuration.

Destination Detection - Integrated scanning system (barcode/RFID/visual recognition) identifies parcel destination and determines optimal diverging lane assignment.

Z-Path Elevation - Conveyor belt guides parcels along Z-shaped path, smoothly elevating packages to target level while maintaining orientation and stability.

Lane Divergence - At target elevation, diverging mechanism redirects parcels into assigned lanes (2-10 options) with 99%+ accuracy for downstream sorting or packing.

Technical Specifications

Parameter	Specification	Remarks
Throughput Capacity	2000 - 4000 pcs/hour	Adjustable by lane count
Number of Lanes	2 - 10 lanes	Customizable configuration
Belt Width	300 - 600 mm	Accommodates diverse parcel sizes
Z-Elevation Height	3 - 5 meters	Vertical elevation capability
Sorting Accuracy	â¥ 99%	High-precision diverging
Power Supply	380V / 50Hz (Customizable)	Industrial standard
Control System	PLC + HMI Touch Screen	User-friendly interface
Communication Protocol	TCP/IP, Modbus, PROFINET	Flexible integration options

Frequently Asked Questions

Q: What is a Z-Type Diverging Sorting Machine and how does it improve logistics efficiency?

A: A Z-Type Diverging Sorting Machine is a conveyor-based system that uses a Z-shaped elevation path to route parcels from a single infeed line into multiple diverging lanes (2-10 options). It improves logistics efficiency by automating parcel routing, reducing manual sorting labor, and achieving 2000-4000 pcs/hour throughput with 99%+ accuracy. The space-saving Z-design enables vertical elevation between sorting levels without expanding floor space.

Q: How many diverging lanes can be configured on a Z-Type Diverging Sorter?

A: The Z-Type Diverging Sorting Machine supports 2-10 configurable diverging lanes, making it suitable for operations ranging from small e-commerce fulfillment centers to large-scale express distribution hubs. Each lane can be independently controlled and assigned to specific destinations, enabling complex multi-route sorting workflows. The modular design allows future expansion as business volume grows.

Q: What parcel sizes are compatible with the Z-Type Diverging Sorting Machine?

A: The system accommodates a wide range of parcel sizes thanks to its adjustable belt width (300-600mm). It can handle small envelopes, standard boxes, soft packets, and medium-sized packages commonly found in e-commerce, express delivery, and postal services. The Z-path transition is designed for gentle handling, making it suitable for fragile items and high-value goods.

Q: Can the Z-Type Diverging Sorter integrate with existing warehouse automation systems?

A: Yes, the Z-Type Diverging Sorting Machine features a modular design with standard communication protocols (TCP/IP, Modbus, PROFINET) for seamless integration with existing conveyor networks, cross-belt sorters, automated guided vehicles (AGVs), and warehouse management systems (WMS). The PLC + HMI touch screen control system provides intuitive operation and real-time status monitoring.
