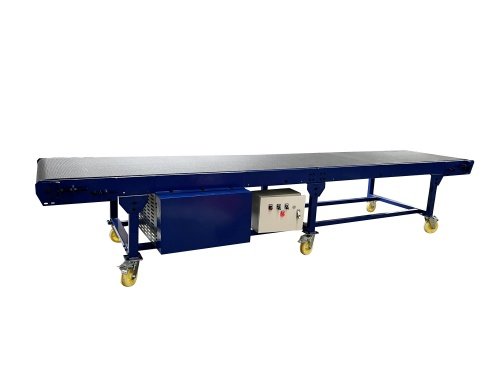

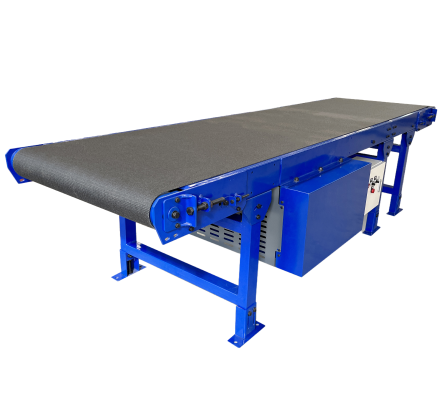

Carbon steel structure PVK belt conveyor

Carbon steel structure PVK belt conveyor

Express logistics belt conveyors are core automated equipment in modern logistics systems, specifically designed for efficient parcel sorting, warehousing and handling, and material supply for production lines. Centered around durable PVK conveyor belts, they feature oil resistance, corrosion resistance, and anti-static properties, adapting to diverse scenarios such as food, electronics, and tobacco. The belt width covers 50-120 centimeters, thickness 3 millimeters, and supports customizable expansion to 2 meters wide and 40 meters long, meeting the needs of logistics scenarios of different scales.

In terms of application, this equipment is widely used in e-commerce sorting centers, warehouse handling, and production line integration. For example, an e-commerce logistics center deployed a high-speed conveyor system combined with QR code weighing (DWS) and visual recognition technology to achieve precise sorting of 30,000 parcels per hour, with an accuracy rate of 99.99%; In automotive manufacturing, conveyors and robots work together, significantly shortening component assembly wait times and improving production line efficiency.

Express logistics belt conveyors are automated equipment specifically used for logistics sorting, parcel delivery, and warehousing handling. With their efficiency, flexibility, and durability, they have become indispensable core equipment in modern logistics systems. Its core function is to achieve rapid parcel distribution, loading, unloading, and transfer through continuous or intermittent conveyance, significantly improving logistics efficiency and reducing labor costs.

Conveyor belt

Material: Made of PVK, PVC, or PU, featuring oil resistance, corrosion resistance, and anti-static properties, suitable for special environments such as food, tobacco, and electronics.

Specifications: width 50-120 cm (standard 800 mm), thickness 3.0 mm, supports custom width up to 2 meters, conveying length up to 18 meters.

Function: Optional baffles, skirt edges, or anti-slip textures to prevent wrapping from slipping.

Support frame

Material: Blue metal frame (carbon steel with powder coating or aluminum profiles), sturdy structure and small footprint, suitable for spaces with limited space.

Design: Modular structure supporting straight, climbing (0°-30°), and turning (30°-180°) layouts, with auxiliary facilities such as workbenches and lamp stands available.

Transmission device

Motor: Standard Taibang/Zhengming motor, preferably SEW or Nord motor, power 0.75-2.2kW, supports variable frequency speed control (15-25 meters/minute).

Inverter: Schneider inverter enables stepless speed regulation to adapt to different parcel sorting rhythms.
