Circular Cross-belt Sorter | 40K pcs/h >99.99% Accuracy - WINDA

1. Core Performance Sorting efficiency: 18,000 items/hour (actual operation) Main line speed: 2.0 m/s (7.2 km/h) Package compatibility: 0.1-35kg, sizes 100×100×10mm to 600×400×350mm Equipment dimensions: circular wire diameter 12m (standard configuration) 2. Technical Highlights Circular structure: 360° continuous sorting, 98% equipment utilization rate Precise control: positioning accuracy ±1.5mm, damage rate <0.02% Silent design: operating noise ≤68dB, maintenance interval 2,500 hours Intelligent integration: supports multi-system integration, OCR first read rate 99.98%

Send Email：[email protected]

Email INQUIRY

Product details

Circular Cross-belt Sorter

High-Speed 40,000 pcs/h Circular Sorting System | >99.99% Accuracy | CE/ISO Certified

40,000 pcs/h

Theoretical Throughput

>99.99%

Sorting Accuracy

<65dB

Noise Level

Customizable

Grid & Lane Config

Product Overview

The Circular Cross-belt Sorter is a high-performance automated sorting solution engineered for high-volume logistics operations including express delivery hubs, e-commerce fulfillment centers, and pharmaceutical distribution facilities. Built on a robust circular track system, this sorter employs independently controlled belt trolleys that carry parcels along a closed-loop path, enabling continuous high-speed sorting with exceptional accuracy.

With a theoretical throughput of 40,000 parcels per hour and actual operational efficiency of 21,600 parcels per hour, this system dramatically reduces labor costs while improving sorting precision to >99.99%. The dual-zone 12-person collaborative package supply design ensures smooth parcel infeed even during peak periods. Its standardized sorting operations minimize parcel impact damage, achieving a cargo loss rate below 0.01%.

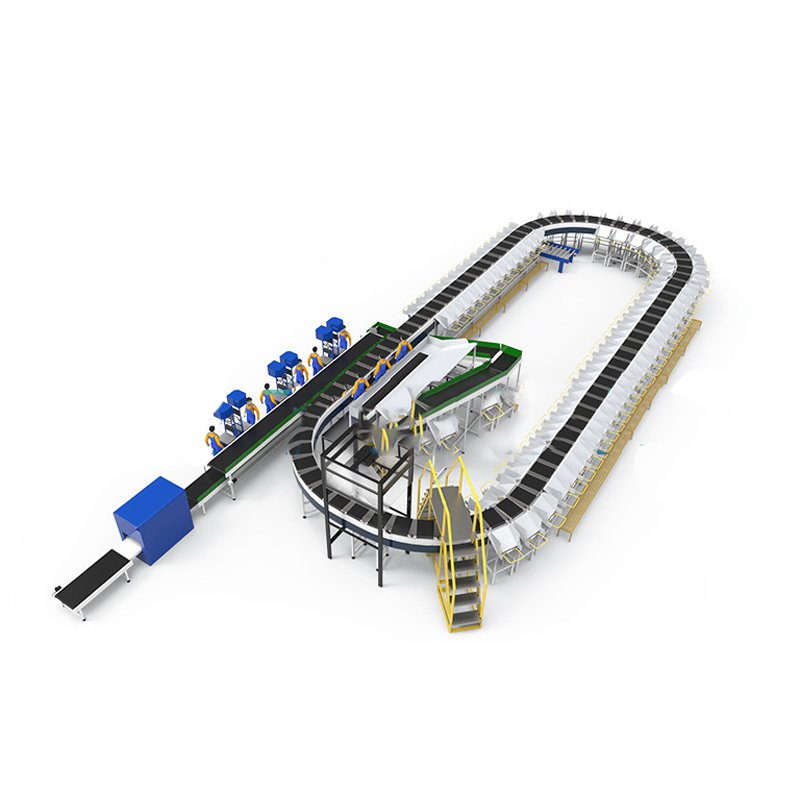

Figure 1: Circular Cross-belt Sorter - System Overview

Core Technical Features

[+] Circular Track System

Closed-loop circular track design with individually driven belt trolleys. Each trolley operates independently, enabling precise parcel delivery to designated chutes with minimal tracking error.

[+] High-Speed Throughput

Theoretical capacity 40,000 pcs/hour with actual verified throughput of 21,600 pcs/hour. Configurable trolley count optimizes performance for specific operational requirements.

[+] Dual-Zone Infeed Design

12-person collaborative package supply across dual zones ensures continuous high-speed parcel import. Prioritized grid width expansion (>750mm) accommodates large-item sorting scenarios.

[+] Integrated DWS Recognition

Seamless integration with automatic QR code scanning, weighing, and volume measurement (DWS) systems. Reduces manual intervention and enables fully automated sorting decisions.

[+] Ultra-Low Loss Rate

Standardized gentle sorting operations with minimal parcel impact. Cargo loss rate below 0.01%, protecting high-value and fragile items throughout the sorting process.

[+] Noise Reduction Design

Engineered for quiet operation with noise levels below 65dB. Suitable for indoor working environments and facilities with strict noise regulation compliance requirements.

How It Works

Parcel Infeed: Operators or automated feeders place parcels onto the dual-zone infeed stations. The 12-person collaborative design ensures continuous parcel flow even during peak sorting periods.
Trolley Assignment: Integrated DWS system (scanning + weighing + dimensioning) identifies parcel destination in real-time. The control system assigns the parcel to the optimal belt trolley on the circular track.
Circular Transport: Belt trolleys carry parcels along the closed-loop track at controlled speeds. Each trolley's belt runs independently to ensure precise parcel positioning before discharge.
Precision Discharge: Upon reaching the designated chute, the trolley belt actuates to gently slide the parcel into the correct output lane. Sorting accuracy exceeds 99.99% with cargo loss below 0.01%.

Figure 2: Cross-belt Trolley Detail View

Technical Specifications

Parameter	Specification
Theoretical Throughput	40,000 pcs/hour
Actual Throughput	21,600 pcs/hour (verified)
Sorting Accuracy	>99.99%
Cargo Loss Rate	<0.01%
Noise Level	<65dB (indoor compliant)
Infeed Design	Dual-zone, 12-person collaborative supply
Grid Width (Large Item)	Prioritized >750mm expansion
Trolley Drive	Independent belt control per trolley
DWS Integration	Automatic scanning + weighing + dimensioning
Custom Options	Grid count, lane height, trolley quantity configurable

Application Scenarios

Express Sorting Centers

High-volume parcel sorting with integrated DWS for 99.99% accuracy and real-time WMS/TMS sync

E-commerce Fulfillment

Multi-category sorting for footwear, books, electronics, pharmaceuticals with gentle handling

Pharmaceutical Logistics

Temperature-sensitive drug sorting with traceability and minimal cargo loss rate<0.01%

Supermarket Supply Chain

Precise sorting to individual stores or regional distribution centers for retail chains

Third-Party Logistics (3PL)

Flexible grid and lane configurations to accommodate diverse client requirements and SKU profiles

Cross-dock Operations

Rapid transshipment with minimal storage time, enabling same-day delivery commitments

Why Choose WINDA

✓ Proven High-Speed Performance -- Verified 21,600 pcs/hour actual throughput with >99.99% accuracy in production deployments
✓ Ultra-Low Loss Rate -- Industry-leading<0.01% cargo damage rate through gentle belt-discharge design
✓ CE / ISO Certified -- International quality assurance compliance for global market requirements
✓ Custom Engineering -- Tailored grid count, lane height, and trolley quantity for unique operational constraints
✓ Factory Direct Pricing -- Shenzhen-based manufacturer with competitive pricing and no middleman markup
✓ Global After-Sales Support -- Remote diagnostics, spare parts availability, and on-site technician deployment within 48 hours

Frequently Asked Questions

Q: What is the actual vs. theoretical throughput of the Circular Cross-belt Sorter?

A: The theoretical maximum throughput is 40,000 parcels per hour. In actual production deployments, the verified throughput is 21,600 parcels per hour. The actual throughput depends on factors including parcel mix, infeed rate consistency, chute configuration, and trolley quantity. We recommend a site assessment to determine the optimal configuration for your specific operational profile.

Q: How does the cargo loss rate compare to other sorting technologies?

A: The Circular Cross-belt Sorter achieves a cargo loss rate below 0.01%, which is significantly lower than traditional pop-up wheel sorters (0.1-0.5%) and tilt-tray sorters (0.05-0.1%). The gentle belt-discharge action minimizes impact damage, making it ideal for fragile items, electronics, and pharmaceuticals.

Q: Can the system handle oversized or irregular parcels?

A: Yes. For large items, we prioritize grid width expansion to >750mm. The system can be configured with wider belts and reinforced trolleys to accommodate parcels up to 5-10kg. For irregular shapes, the DWS system automatically measures dimensions and routes them to appropriate chutes. Extremely oversized items may require a secondary conveyor system.

Q: What is the lead time and installation process?

A: Standard configurations require 30-45 business days including engineering design, fabrication, factory testing, on-site installation, and commissioning. The modular track design enables phased installation to minimize operational downtime. Our technicians provide on-site supervision and operator training as part of the standard service package.

Q: Does the system integrate with existing WMS/TMS software?

A: Yes. The Circular Cross-belt Sorter supports standard API integrations with major WMS (Warehouse Management Systems) and TMS (Transportation Management Systems). We provide REST API documentation, SDK libraries, and technical support for custom integration projects. Compatible with SAP EWM, Oracle WMS, Manhattan Associates, and most domestic Chinese WMS platforms.

Q: What after-sales support does WINDA provide?

A: WINDA provides comprehensive 24/7 remote technical support, on-site maintenance services, spare parts fulfillment within 48 hours, and annual system health checkups. Our service team is based in Shenzhen with satellite offices in Shanghai, Beijing, and Guangzhou. International customers receive remote diagnostics and can request on-site technician deployment with travel costs covered under premium service contracts.
